| AMX HYDRALIC PRESS |
H-Frame presses are designed for general maintenance
Heavy duty welded frame minimizes flex under load.

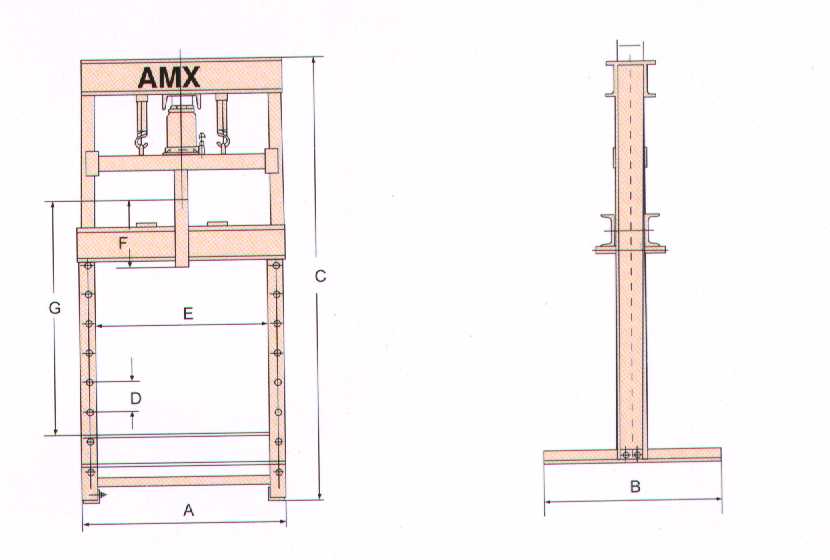

| Model | Capacity (ton) | Dimensions (mm) | Working Height (mm) | G.W | ||||||
| A | B | C | D | E | F | G | ||||
| HPJ6 | 6 | 420 | 500 | 920 | 75 | 340 | 125 | 200 | 0-200 | 31 |

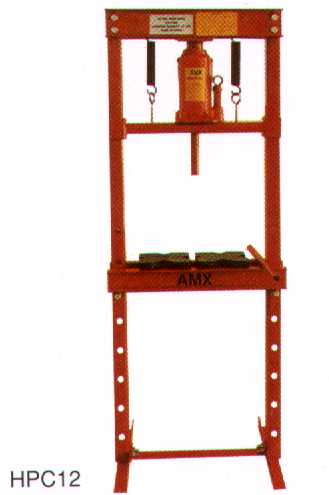

| HPC12 | 12 | 500 | 500 | 1354 | 90 | 420 | 160 | 700 | 0-700 | 50 |
| HPT20 | 20 | 670 | 600 | 1508 | 100 | 570 | 180 | 725 | 0-725 | 102 |
| HPC20 | 20 | 670 | 600 | 1508 | 100 | 570 | 180 | 725 | 0-725 | 101 |
| HPJ30 | 30 | 760 | 610 | 1650 | 115 | 620 | 180 | 810 | 0-810 | 142 |
|
|
| Style | European Style | A-Type | |||||

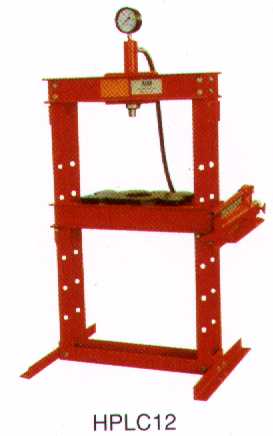

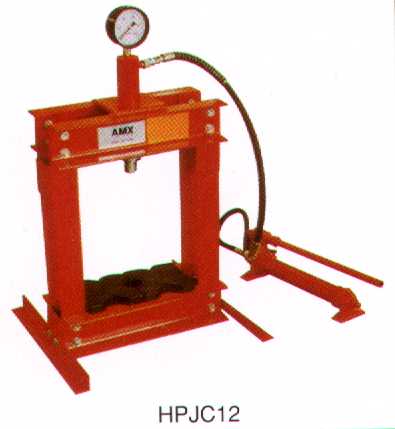

| Model | HPJC12 | HPLC12 | HPYC45 | HPAYJ6 | HPAYJ12 | HPAYJ20 | HPAYJ30 |
| Capacity(ton) | 12 | 12 | 45 | 6 | 12 | 20 | 30 |
| Working Height (mm) | 130 | 130 | 780 | 105 | 655 | 535 | 555 |
| Packing Size(cm) | 63x27x25 | 138x23x26 | 184x108x46 | 63x26x11 | 105x26x11 | 62x29x22 | 68x36x19 |
| 27x23x39 | 107x18x11 | 68x36x19 | |||||
| 22x20x28 | 22x22x32 | ||||||
| Gross Weight(kg) | 58 | 88 | 315 | 28 | 52 | 93 | 107 |
 |
 |
|
|
